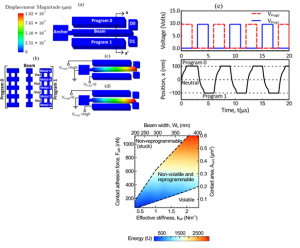

Figure 3: Coventor MEMS+® model of reconfigurable BEOL NEM switch (left), simulated transient behavior (middle) and simulated minimum (re)programming energy contour plot as a function of effective stiffness and contact adhesive force (right) [3].   Courtesy:   University of California, Berkely
