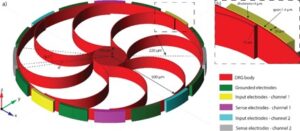

Figure 1 contains physical drawings of a Disk Resonating Gyroscope. Figure 1(a) displays an isometric view of the layout, including the DRG body, grounded electrodes, and the input electrodes and sense electrodes for channels 1 and 2. Figure 1(b) shows a detailed view of the radial electrodes as an inset to Figure 1(a), displaying gaps, thicknesses and other dimensions in microns.
