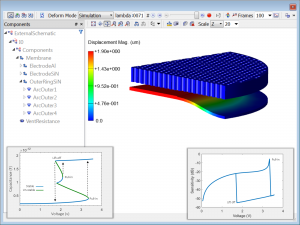

Quarter condenser MEMS Microphone model actuated into contact. For clarity the model is scaled in Z by a factor of 20 and contact bumpers hidden. The left hand plot shows capacitance as a function of voltage, simulated using a continuation algorithm to determine both stable and unstable states. The right hand plot show the variation in sensitivity at 1 KHz with bias voltage.
