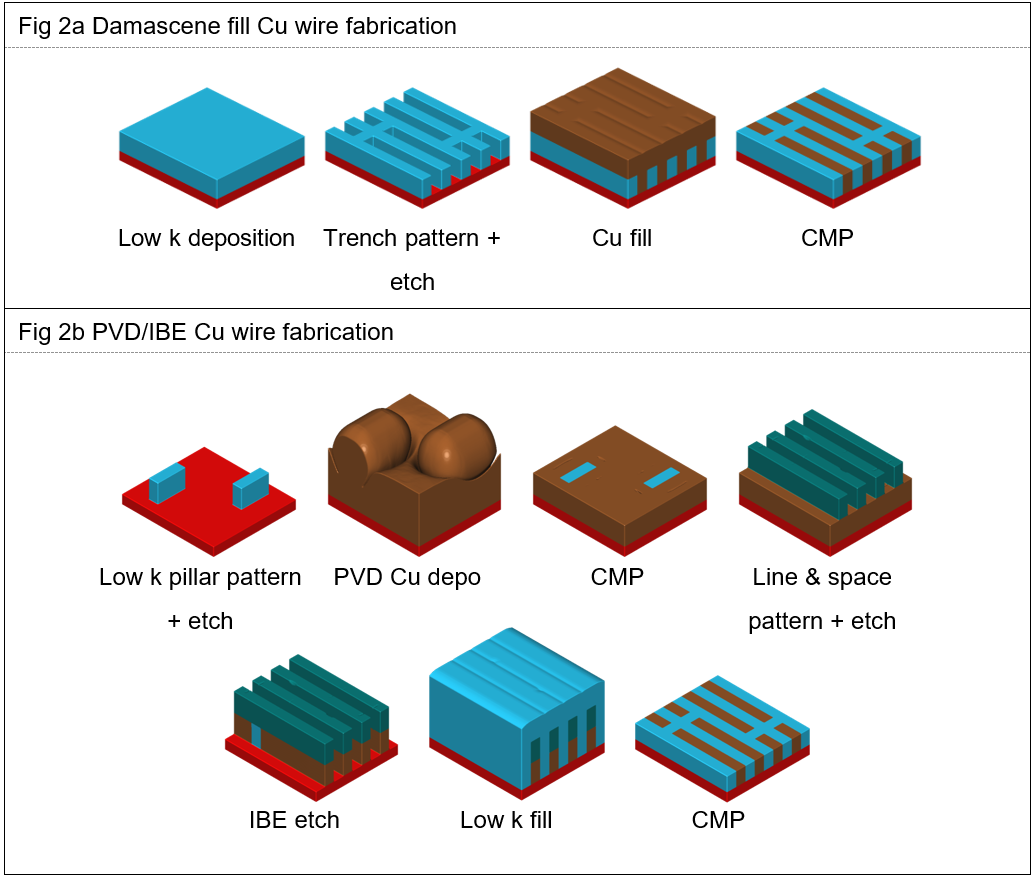

Figure 2a (top image) displays the four (4) Damascene fill Cu wire fabrication steps to produce a 16 nm SRAM cell, while Figure 2b (bottom image) displays the equivalent PVD/IBE Cu wire fabrication steps (7) needed to produce the same structure for a 16 nm SRAM cell.
